An insignificant fraction of radiation is constantly present in the environment, objects, clothing, food, building walls, etc. If the background radiation exceeds the norm, a person may develop malignant diseases.

Radioactive radiation occurs as a result of the decay of the nucleus of an atom. In this process, the active (radioactive) isotope seeks to get rid of the accumulated excess energy. The result is ionization or radiation. New radioactive particles have their own definite lifespan. This is called the half-life. After a while, the radiation becomes inactive.

There are the following types of particle emission:

Alpha is a positively charged particle that creates a very powerful ionizing stream, but does not reach matter and is unable to penetrate cells;
Beta is an electron or positron. Particles faster than alpha. They have a penetrating ability to a depth of no more than 10 mm;
Gamma radiation is a penetrating wave. Its particles propagate at the speed of light, because they have very high energy. However, after a while, they tend to quickly dissipate, or disappear. Gamma rays include x-rays and waves emitted by the sun that are not allowed through by the Earth's atmosphere.

It is known that the natural background of radiation is not harmful to the human body, but rather useful. Small doses of ionization can “wake up” the body, activating the natural immune defenses. Irradiation can occur only through direct contact with a radiation source. The only way to reliably check the level of radiation in the environment is with a dosimeter. The compact device is capable of detecting violations, protecting the health of humans, animals and plants from negative effects.

See also: How to change a drill in a drill – proven methods!

What radiation is most dangerous to health?

It should be said that a device for measuring radiation at home, a dosimeter, in some cases can be mistaken for a radiometer, another means for measuring radiation, which, however, works a little differently. What is the principle of operation of dosimetry devices? If a dosimeter measures the exact amount of ionizing substances in the air for a certain period of time, then a radiometer is needed in order to check the degree of charge of radiation particles in a certain sample.
A sample in this case can be a liquid, gas, spray, a certain surface, etc. Modern dosimetry instruments and radiometers are used in order to calculate the amount and energy of suspicious radio particles in a certain area, on a surface or on objects.
It is worth noting that various items for measuring radiation and instruments for measuring background radiation are needed for the reason that ionizing substances can be of different nature and affect a person in different ways. For example, scientists today divide all types of radiation into artificial and natural. It is customary to call natural radionuclides that soar in the atmosphere and are periodically released from rocks, volcanic zones, and cosmic cataclysms. Artificial radiation is one created by man himself. Such ions can be diagnosed in areas where nuclear power plants, nuclear weapons factories, and chemical laboratories are located.
Artificial radionuclides are considered to be the most dangerous and active, since they aggressively affect the human body and have the highest possible level of charge. Natural radiation elements are measured, as a rule, in small quantities for the reason that they are scattered in the atmosphere and are not dangerous for human life. The most dangerous can be such radiation particles of natural origin, which are emitted in the area of volcanic rocks and in high mountainous areas.
In order to measure the degree of charge and the concentration of various types of radiation particles in the air, several separate instruments for measuring radiation are used, the name of which you already know.

Personal dosimeter with Geiger counter

This class of devices has a high sensitivity in contrast to the outdated models with ionization chambers. Reliable models are offered by many domestic manufacturers: Terra, MKS-05, DKR, Radex, RKS. These are all stand-alone instruments with display of data in standard units of measurement. There is a mode of indication of the accumulated radiation dose and the instantaneous background level.

A promising direction is a household dosimeter-attachment to a smartphone. Such devices are produced by foreign manufacturers. They have rich technical capabilities, they have the function of storing readings, calculating, recalculating and summing radiation for days, weeks, months. So far, due to low production volumes, the cost of these devices is quite high.

How a radiation dosimeter works

A radiation dosimeter is a device that is able to capture, register and show the dose of ionizing radiation.

Dosimeters are divided into several classes:

Indicators. A simple device with low sensitivity and low accuracy. Registers pronounced radiation anomalies, is able to identify “luminous” objects. It has a low price and is suitable for ordinary users.
Signaling devices. Catch sharp bursts of radioactive background. They have a small size, a capacious battery and an adjustable radiation level limit. As soon as the user suddenly begins to “flicker” around the user, a sound or light alarm is triggered.
Meters. This is already a high-precision instrument equipped with a sensitive sensor. Able to measure the radiation of the surrounding space and specific objects. It can measure the background of household items and building materials, therefore it is used as a meter, but already in a completely different price category.
Search engines. A very expensive device that cannot measure accurately. Designed to search for sources of radioactive radiation.

The main component of any dosimeter is a radiation-sensitive sensor, which is of several types:

scintillation crystal – an ultrasensitive sensor, usually used in search engines, rarely in meters and alarms;
end mica counter – the well-known Geiger-Muller, feels beta-rarely alpha-radiation, mainly stands in meters;

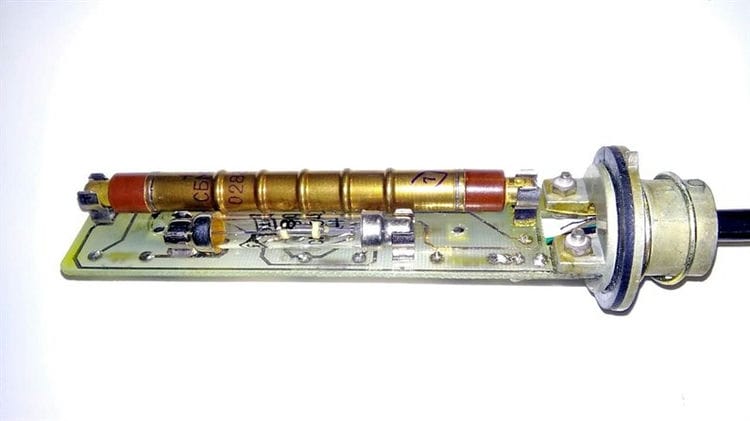

the SBM tube is the most common type, sensitive to gamma and a little to beta radiation, but not distinguishing them.

In home dosimeters, SBM-20 is most often used, there are especially compact models equipped with SBM-10 and 21, but they are distinguished by low sensitivity.

Measurement of alpha, beta and gamma radiation

Gamma radiation is the easiest to measure. This is electromagnetic radiation, which is a stream of photons (light is also a stream of photons). Unlike light, it has a much higher frequency and a very short wavelength. This allows it to penetrate atoms. In civil defense, gamma radiation is penetrating radiation. It penetrates through the walls of houses, cars, various structures and is retained only by a layer of earth or concrete of several meters. Registration of gamma quanta is carried out with the calibration of the dosimeter according to the natural gamma radiation of the sun. No radiation sources required. Beta and alpha radiation is a completely different matter.

If ionizing radiation α (alpha radiation) comes from external objects, then it is almost safe and is a stream of helium nuclei. The range and permeability of these particles is small – a few micrometers (maximum millimeters) – depending on the permeability of the medium. Due to this peculiarity, it is hardly registered by the Geiger counter. At the same time, the registration of alpha radiation is important, since these particles are extremely dangerous when they penetrate into the body with air, food, and water. For their decree, Geiger counters are used to a limited extent. Special semiconductor sensors are more common.

Beta radiation is perfectly detected by a Geiger counter because a beta particle is an electron. It can fly hundreds of meters in the atmosphere, but it is well absorbed by metal surfaces. In this regard, the Geiger counter must have a mica window. The metal chamber is manufactured with a small wall thickness. The composition of the internal gas is selected in such a way as to ensure a small pressure drop. The beta radiation detector is mounted on a remote probe. In everyday life, such dosimeters are not widely used. These are mainly military products.

Parameters and operating modes of the Geiger counter

To calculate the counter sensitivity, estimate the ratio of the number of micro-roentgen from the sample to the number of signals from this radiation. The device does not measure the energy of the particle, therefore it does not give an absolutely accurate estimate. The devices are calibrated using samples of isotope sources.

You also need to look at the following parameters:

Working area, entrance window area

The characteristic of the area of the indicator through which the microparticles pass depends on its size. The wider the area, the more particles will be caught.

Working voltage

The voltage should correspond to the average specifications. The very characteristic of work is the flat part of the dependence of the number of fixed pulses on voltage. Its second name is plateau. At this point, the operation of the device reaches its peak activity and is called the upper measurement limit. The value is 400 volts.

Working width

The working width is the difference between the flat point voltage and the spark discharge voltage. The value is 100 Volts.

Incline

The value is measured as a percentage of the number of pulses per volt. It shows the measurement error (statistical) in pulse counting. The value is 0.15%.

Temperature

Temperature is important as the meter often has to be used in difficult conditions. For example, in reactors. General use meters: -50 to +70 C Celsius.

Work resource

The resource is characterized by the total number of all pulses recorded until the moment when the readings of the device become incorrect. If the device contains organic matter for self-extinguishing, the number of pulses will be one billion. The resource is appropriate to calculate only in the state of operating voltage. When the device is stored, the flow stops.

Recovery time

This is the amount of time it takes for a device to conduct electricity after responding to an ionizing particle. There is an upper limit for the pulse rate, which limits the measurement interval. The value is 10 microseconds.

Due to the recovery time (also called dead time), the device can fail at a decisive moment. To prevent overshooting, manufacturers install lead screens.

Does the counter have a background

The background is measured in a thick-walled lead chamber. The usual value is no more than 2 pulses per minute.

Capabilities of Geiger counters, sensitivity, recorded radiation

With a Geiger counter, gamma and beta radiation can be registered and measured with high accuracy. Unfortunately, the type of radiation cannot be recognized directly. This is done indirectly by installing barriers between the sensor and the object or terrain being inspected. Gamma rays are highly permeable and their background does not change. If the dosimeter detects beta radiation, then the installation of a separating barrier, even from a thin sheet of metal, will almost completely block the flow of beta particles.

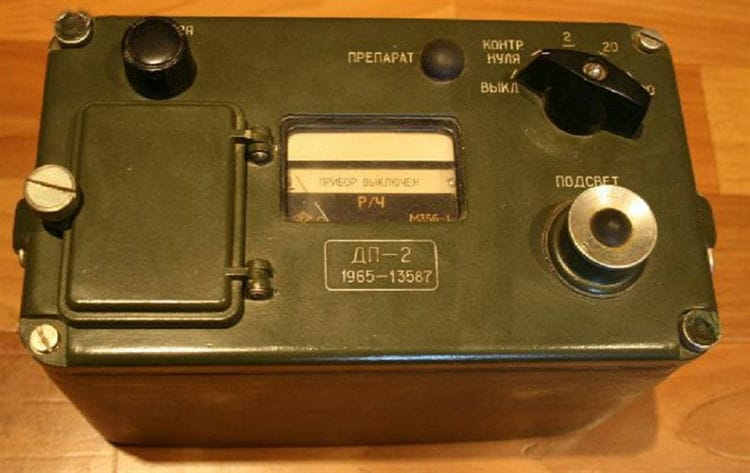

The sets of individual dosimeters DP-22, DP-24 widespread in the past did not use Geiger counters. Instead, they used an ionization chamber sensor, so the sensitivity was very low. Modern dosimetry instruments based on Geiger counters are thousands of times more sensitive. They can be used to register natural changes in the solar radiation background.

A remarkable feature of the Geiger counter is its sensitivity, tens and hundreds of times higher than the required level. If you turn on the counter in a completely protected lead chamber, it will show a huge natural background radiation. These readings are not a defect in the design of the meter itself, which has been verified by numerous laboratory tests. Such data is a consequence of the natural radiation cosmic background. The experiment only shows how sensitive a Geiger counter is.

Especially for the measurement of this parameter, the technical specifications indicate the value of the “imp microsecond counter sensitivity” (pulses per microsecond). The more these impulses, the greater the sensitivity.

Radiation measurement with a Geiger counter, dosimeter circuit

The dosimeter circuit can be divided into two functional modules: a high-voltage power supply unit and a measuring circuit. High voltage power supply – analog circuit. The measuring module on digital dosimeters is always digital. This is a pulse counter that displays the corresponding value in the form of numbers on the scale of the device. To measure the radiation dose, it is necessary to count the pulses per minute, 10, 15 seconds or other values. The microcontroller converts the number of pulses into a specific value on the dosimeter's scale in standard radiation measurement units. Here are the most common ones:

X-rays (micro-X-rays are usually used);
Sievert (microsievert – mSv);
Bride;
Gray, glad
flux density in microwatts / m2.

Sievert is the most popular unit for measuring radiation. All norms are correlated to it, no additional recalculations are required. Rem is a unit for determining the effect of radiation on biological objects.

Comparison of a gas-discharge Geiger counter with a semiconductor radiation sensor

The Geiger counter is a gas discharge device, and the current trend in microelectronics is getting rid of them everywhere. Dozens of variants of semiconductor radiation sensors have been developed. The level of background radiation recorded by them is much higher than for Geiger counters. The sensitivity of a semiconductor sensor is worse, but it has another advantage – economy. Semiconductors do not require high voltage power. They are well suited for portable, battery-operated dosimeters. Another advantage is the registration of alpha particles. The gas volume of the meter is significantly larger than a semiconductor sensor, but still its dimensions are acceptable even for portable equipment.

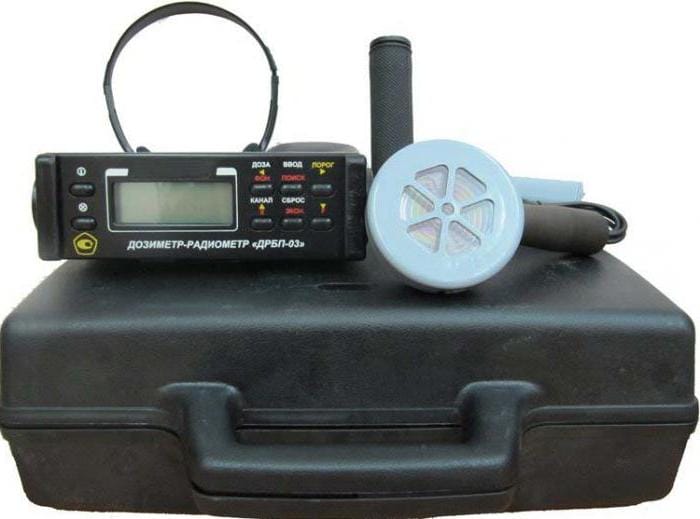

Model DRBP-03

The device is an ergonomic measuring instrument provided with a control panel with an integrated gamma-ray detector. The delivery set also includes a remote sensing element for registration of alpha and beta spectra. The features of the device include a metal case, the ability to set threshold values for all measurement ranges and sound alarms on previously installed phones. The DRBP-03 dosimeter-radiometer provides several operating modes at the user's disposal. The main one is “Search”, which allows you to perform accelerated scanning of the background radiation. According to the manufacturer, the assessment of the situation is made in just 4-5 seconds. It also provides a mode of economical energy consumption, in which the average background radiation indicators are calculated.

Radiation dosimeter design and operating principle

The main working part of the apparatus is the radiation sensor. It depends on him how quickly the data can be obtained and how accurate they will be. Under the influence of alpha, beta and gamma radiation, voltage surges occur in the sensor, which are converted into numerical data.

Sensors differ from each other in sensitivity and are:

Geiger-Muller mica counters. They are installed in household dosimeters. Alpha and beta particles are captured.
Gas discharge. Used for small, pocket-sized devices. Beta and gamma radiation is recorded and only the critical level is shown.
Thermoluminescent lamps are found in personal dosimeters. The accumulated dose of radiation is measured.
Scintillation crystals. They fix photons and their sensitivity is maximum. However, they are useless for measuring alpha radiation.
Pin diodes are the least sensitive sensors that record only critical levels. As a rule, they are installed in telephone plugs.

Another component of the dosimeter is the warning system. In budget household devices, it is LEDs and sound. The higher the background radiation, the more intense the flickering and characteristic crackling of the device. Newer dosimeters, as well as professional modifications, are equipped with a data converter and a screen for displaying them.

The radiation dosimeter can also have additional functions, for example, an external detector, setting measurement modes and connecting to a PC or tablet for data analysis. The most suitable model is selected taking into account the requirements of the consumer and the conditions of use.

According to their purpose, dosimeters are divided into:

Household. They react only to gamma radiation, have a high degree of error and are used to measure the radiation background in the room, as well as radiation from food and other objects.
Professional. Capture alpha particles, protons and neutrons. Measure the level and dose of radiation in rooms and on the ground, from living objects, objects, gases and liquid substances. Such models must be registered in the Rosstandart register.
Industrial. Designed for continuous monitoring of radiation levels. Installed at nuclear power plants, mining and processing enterprises, etc.
Military. Designed for use in wartime.

Among household devices, personal, pocket and portable are distinguished.

Personalized in size, they resemble a regular keychain. They can register beta, gamma particles, neutron and photon flux. They react to exceeding the permissible threshold with sound or vibration. Some devices have a light signal. Such a device does not have a display, and numerical data can only be obtained when connected to a computer. They are intended to inform their owner about his presence in a potentially dangerous zone.

The pocket radiation dosimeter allows not only to detect an increase in the permissible background of beta and gamma radiation, but also to capture the obtained data. They are small in size, powered by a rechargeable battery or batteries, have a screen and an uncomplicated menu.

There are also more equipped options that connect to a phone and / or tablet and have more functionality.

Portable devices combine a dosimeter and a radiometer. Their functions also include the search for an infected item or object. They react to gamma radiation, use different types of notification (light, sound), display data on the display and have the ability to connect to a PC for data analysis.

How to choose the right household dosimeter?

The key element of the dosimeter is a special sensor, which can be used to determine the degree of radioactive contamination, and this can be done in real time. The efficiency of the work of this part directly depends on how quickly the result and its error will be obtained. There are two types of sensors – cylindrical and end sensors. The first looks like an elongated tube made in the form of a cylinder. The end ones are equipped with a special ionization chamber, and the working surface is much larger here.

Most modern instruments are capable of measuring alpha, beta and gamma radiation. They allow you to determine the dose rate received in a predetermined period of time, and in this case, it should be borne in mind that radiation tends to accumulate in organic tissues. There is also a natural background radiation emanating directly from the ground, so measurements taken at ground level will be slightly higher than those taken at a certain height.

In general, household appliances are characterized by compact dimensions and reasonable cost. Be sure to pay attention to the measurement limits. Typically, in devices designed for home use, this parameter is in the range from 0.05 to 10 μZ / h. There are models that are equipped with both end and cylindrical sensors, which allows for the highest accuracy in measuring the radiation level. This approach increases the sensitivity of the equipment.

It is also necessary to pay attention to the manufacturer – Chinese companies have not yet learned how to make dosimeters of acceptable quality with rare exceptions, but domestic companies produce reliable, durable devices of high accuracy. It is advisable to give preference to the most compact models so that they can be put in your pocket if necessary. If the dosimeter is capable of operating from rechargeable batteries or batteries, then this will be an additional plus. Most users prefer designs equipped with a monochrome liquid crystal display, from which it is convenient to read data. As a rule, it is equipped with a backlight, so the necessary information can be obtained even in conditions of lack of natural light.

When choosing models for inclusion in our rating of the best household dosimeters, we were mainly based on these indicators. However, user reviews and product value for money were also taken into account. We tried to select not very expensive devices so that each of our readers could choose the model that is optimal for themselves, both in terms of cost and functional content.

RADEX RD1008

Domestic products can be used not only in domestic but also in industrial conditions. With its help, you can calculate the level of radiation, find out how dense the flow of radioactive particles is, calculate the doses of gamma and beta radiation. The device can handle even the heaviest alpha particles, which are usually found in luminous paint, some types of crystal, and so on. The principle of operation of this equipment is based on the use of two Geiger-Muller counters. The first is aimed at detecting alpha and beta particles. The second reacts exclusively to gamma radiation. The data that comes from these sensors to the central processor is processed according to the most advanced mathematical algorithms, and the data is displayed on a liquid crystal display.

The device reacts to radiation quite quickly – it will take from 1 to 21 seconds to get the result, depending on how strong the dose comes to the sensor. The device can be used by two people at once, and each of them can set the most convenient settings for themselves. The sensitivity of the equipment is significantly higher compared to previous generation devices. The product runs on ordinary finger-type batteries, the energy consumption is insignificant, so the power supplies will have to be changed about once a year.

Benefits:

Designed and manufactured taking into account the current Russian and international standards;
Can be used by two people;
High response speed;
Approved for use in industrial production;
Works in all ranges of radiation.

Disadvantages:

It is quite expensive for a household appliance.

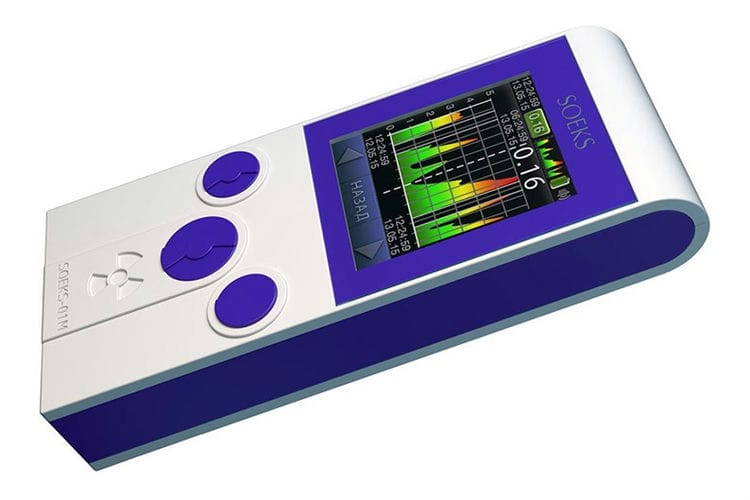

SOEX-01M

The first full-fledged dosimeter in our review, which is able not only to calculate the available background radiation, but also to determine the accumulated dose. The original search function is provided, with its help it will be possible to instantly calculate the location of sources of hazardous radiation. The body of the device is made of special rubberized plastic that is resistant to scratches and other damage. The interface here is very intuitive, so it is easy and simple to use the device. This dosimeter has a processor of the latest generation, so it loads quickly, calculations are also performed almost instantly. Immediately after switching on the dosimeter, the measurement mode is activated. If it is possible to establish an increased dose of radiation, the corresponding text message will be shown on the display.

The set includes two rechargeable batteries, the device can work up to 50 hours on one charge. You can charge them either via the USB port or using the supplied adapter. The interface is completely Russified, so the user can quickly understand the state of food or the environment.

Benefits:

Acceptable cost;
Compact overall dimensions – you can always carry this device with you;
Outwardly resembles an outdated model of a push-button mobile phone;
Insignificant weight;
Performs all necessary calculations quickly;
The set includes two rechargeable batteries;
The rubberized body is resistant to any physical impact.

Disadvantages:

It discharges quite quickly if you keep it on all the time.

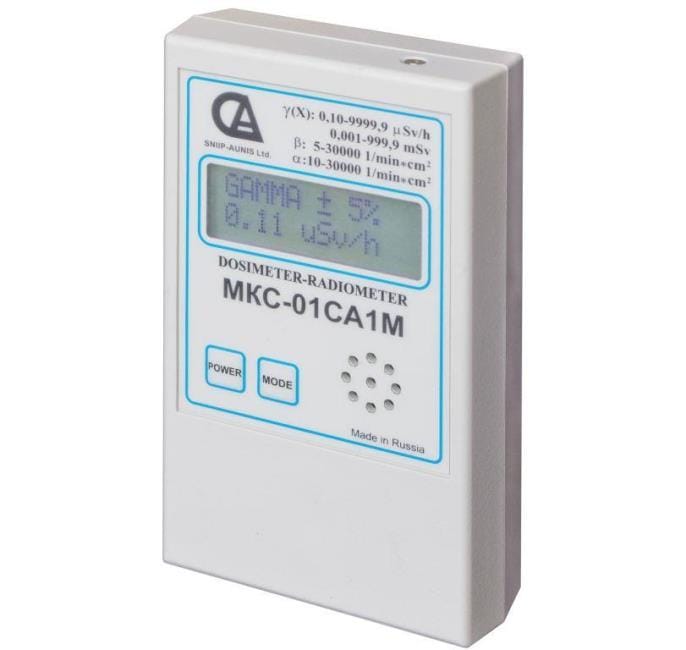

Sniip-Aunis MKS-01SA1

Another model in our review that can be used for both domestic and professional use. It is characterized by ease of use and low cost. This device detects all types of radiation, calculates the source of radioactivity, the direction of the particle flux. It can even be used to control the pollution of banknotes, to quickly assess the situation for ionizing radiation. The device is very convenient to use largely due to its compact size. The developers were able to create an optimal algorithm for calculating the background radiation, which takes a minimum of time. The product is equipped with an easy-to-read alphanumeric LCD display with LED backlighting and is very easy to operate.

There is one original function here – a voice notification about the results obtained during the measurement. There is also a non-volatile memory in which you can save up to 2 thousand measurement results, they are identified by the date and time of the measurement. Extra data can be saved to a personal computer via the USB port. There are only two buttons on the case, but they are quite enough. The device itself is distinguished by excellent build quality and a long battery life, especially if you install high-quality batteries.

Benefits:

Acceptable cost;
Insignificant weight;
High measurement accuracy;
Long battery life;
The presence of a voice notification;
Informative display.

Disadvantages:

It is not very easy to understand the menu;
The backlight is dim.

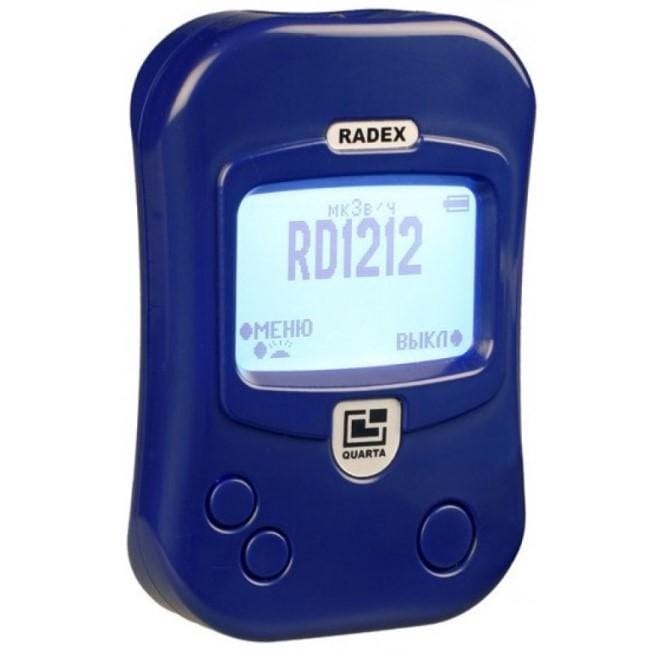

Radex RD1212-VT

We met in our review another model released by a domestic company specializing in the manufacture of household and industrial dosimeters. This unit differs from other models by the ability to periodically store the results. If necessary, the user can transfer all this data to a personal computer using a USB connection. The memory can store up to 180 measurement results, and the recording frequency can be from 1 minute to 24 hours. The device is placed in a special case made of durable plastic, which does not allow alpha and beta particles to penetrate under it. The product also has a flashlight, so it is very convenient to use it in the dark. It should be noted that the battery compartment is combined with the electronic filling of the unit, so it is advisable to buy only the highest quality batteries.

For a full-fledged connection to a computer, you will have to download a special RadexRead application, through which the data will be saved in a file with the extension .txt or .csv. The program itself is Russified and quite understandable for users. You will have to register it by entering the original serial number of the dosimeter itself. The radiation threshold can be changed if desired, the same applies to setting the date and time.

Benefits:

Small overall dimensions;
Ergonomic body fits comfortably in the hand;
Easy to use;
High measurement accuracy;
You can store the entire history of measurements in a separate file on a personal computer or laptop.

Disadvantages:

If the batteries are discharged, the measurement error increases significantly;
The battery compartment fits directly to the board of the device, because of which you will have to use only the highest quality batteries.

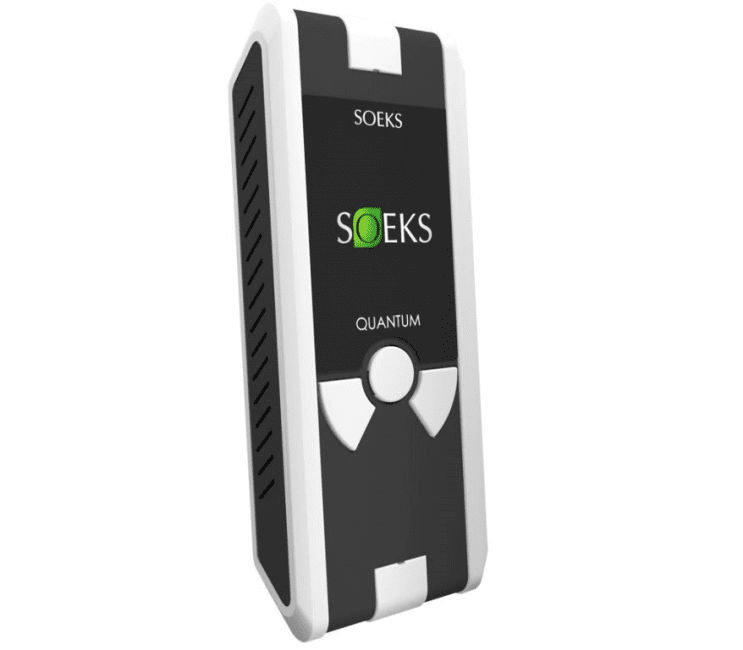

SOEX “QUANTUM”

An inexpensive, but quite effective device for professional use, which is distinguished by an acceptable cost and is equipped with two Geiger counters of the SBM 20-1 type at once. The equipment is very easy to use, so it will be suitable for both an untrained user and a professional who constantly works with sources of ionizing radiation. The product is delivered with a special verification certificate, if necessary, in any metrological center it will be possible to make a new one when the old one ends. This device is equipped with a fairly large liquid crystal display with a resolution of 128×160 pixels, and its main background will inform the user about the presence of hazardous radiation – green (safe), yellow (high background) and red (significant excess).

As mentioned above, there are two Geiger-Müller counters, thanks to which the measurement accuracy is higher, and the time to obtain data is significantly reduced. The device is able to determine not only the current level of radiation pollution of the environment, but also to determine the accumulated dose during a given period of time. The last parameter is considered to be the most effective and informative. The data can be displayed on the screen as a diagram, which is also very convenient – a person receives visual information and is able to determine at what point the radiation background began to increase significantly. If desired, the device can be connected to a computer or laptop. It is quite natural that there is a sound notification system here.

Benefits:

Looks pretty stylish;
Informative liquid crystal display, on which information can be displayed in different ways, depending on the requirements and preferences of the user;
Acceptable cost;
Small overall dimensions.

Disadvantages:

Difficult to understand the interface.

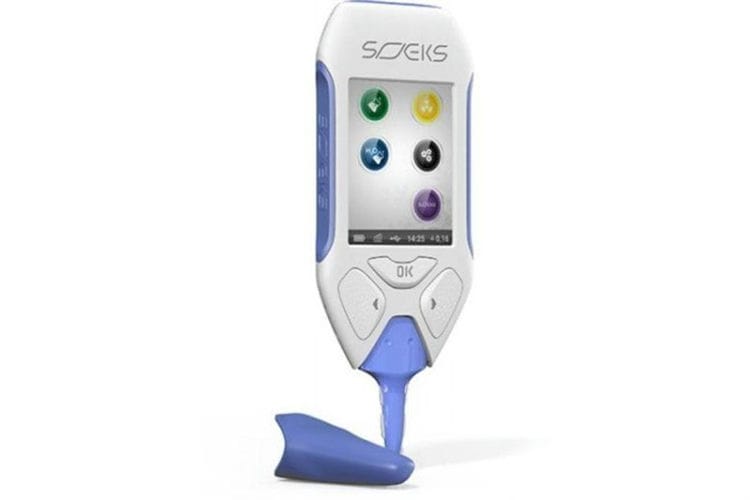

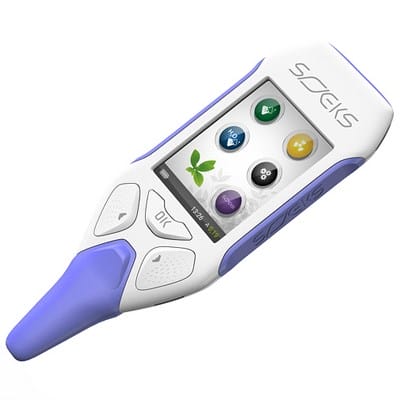

Ecovisor F3

So we got to the top three of the best household radiation dosimeters in our today's review. The leading line is closed by a special environmental control device, with the help of which it is possible not only to determine the level of radiation background, but also to calculate the amount of nitrates contained in vegetables, as well as some properties of water. The body is made of matte plastic, the side elements are rubberized, so during use the device will not slip out of your hands. The products are equipped with an original touch-type full color liquid crystal display. Menu navigation is very simple, so absolutely anyone can operate the device. You can also control the functions of the device with the help of special buttons, they are also designed to adjust the operation of the display – brightness level, changes in time and date.

There is a special probe that allows you to calculate the degree of radiation contamination not only on the surface of food, but also in depth. The same can be said for the nitrates in vegetables. The backlight color changes depending on how dirty it is. With the help of the device, you can quickly calculate the background radiation in rooms where a large number of household appliances are installed.

Benefits:

Extended functionality of the device;
Small overall dimensions;
It is possible to perform calculations even in foodstuffs by immersing the special probe included in the kit to a depth.

Disadvantages:

Some users note that the device turned out to be somewhat expensive for them.

SOEX-112

One of the newest dosimeters in our review, besides it is characterized by small overall dimensions. These are domestic products and can be used both indoors and outdoors. The size of the device is comparable to the most ordinary stationery marker, without batteries it weighs about 30 grams, so you can carry it with you all the time. The case has good durability and is made of reliable plastic. All measurement data are displayed on a monochrome digital display. The Geiger-Muller counter SBM 201 acts as the main working element here. The sensor is distinguished by high susceptibility to beta and gamma radiation, and captures X-rays of various nature.

For continuous operation for one hundred hours, two small batteries are enough, which are popularly nicknamed “tablets” – alkaline-type power cells marked LR44. The interface of the device is simple, it is very easy to understand it. There is a sound indicator that will inform the user about exceeding the maximum permissible background radiation concentration. There are only two buttons on the case. To obtain an accurate measurement result, it is enough to wait only 20 seconds after turning on the device.

Benefits:

High work efficiency;
Ease of operation;
Compact overall dimensions;
Insignificant weight;
The result is displayed fairly quickly.

Disadvantages:

Measures radiation only.

The best professional dosimeters

To determine a wide range of radiation radiation (alpha, beta, gamma), professional dosimeters are used. They quickly and accurately analyze the data obtained, they can work for a long time, they are not afraid of atmospheric influences. The experts drew attention to the following models.

RADEX MKS-1009

Rating: 4.9

Professional dosimeter RADEX MKS-1009 is designed to determine beta and gamma radiation, taking into account the background of alpha rays. The device operates on one battery (1.5 V), all information is displayed on the backlit screen. The Russian dosimeter needs only 25 seconds to analyze and process the received data. Experts highly appreciated the model's ability to promptly warn the owner about exceeding the radioactivity threshold. For this, the device is equipped with a sound and vibration signal function. The time of continuous operation reaches 950 hours. The device takes the first place in our rating.

Users note such advantages of the measuring tool as light weight (0.23 kg), compactness and low error.

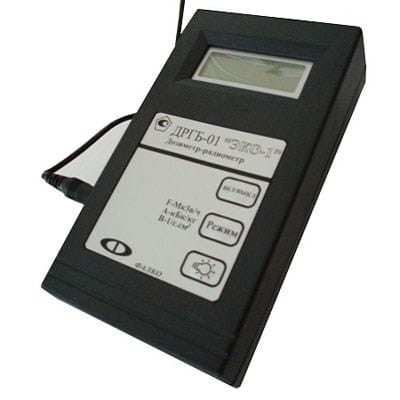

DRGB-01 ECO-1

Rating: 4.8

Another Russian dosimeter was included in our rating of professional devices. The DRGB-01 EKO-1 model has increased sensitivity and ease of use. The dosimeter is able to analyze the radiation environment (beta and gamma radiation), detect contaminated areas. The experts praised the measurement speed, which is only 20 seconds. In addition, the measurement error is at the same low level as that of the winner (15% dose rate, 20% flux density). The device is checked once every 2 years. The measuring device is powered by a battery that is recharged from a household network. Because of this, the weight of the model reaches 0.45 kg.

Professionals speak flatteringly about the simplicity and reliability of the device. They consider only a lot of weight to be the main drawback.

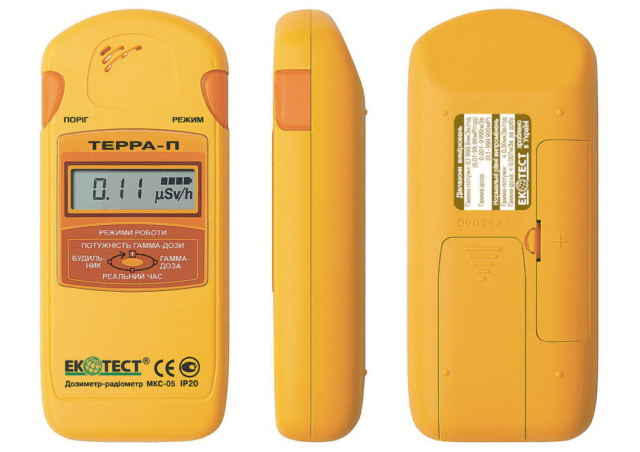

MKS-05 TERRA-P plus

The model measures the level of radiation and estimates the pollution of the living space. The professional device has a backlit digital indicator. The dimensions are small, the weight is small.

Measures background gamma and accumulated dosage, evaluates beta contamination

Works continuously for 6000 hours, measures the radiation level every 5-10 seconds. Supplied complete with AA batteries and instruction manual.

The best household multifunction dosimeters

Household dosimeters are in high demand among Russian consumers. With the help of multifunctional devices, it is possible to detect hazardous products, identify low-quality water and determine the level of radiation. The specialists liked the following multifunctional devices.

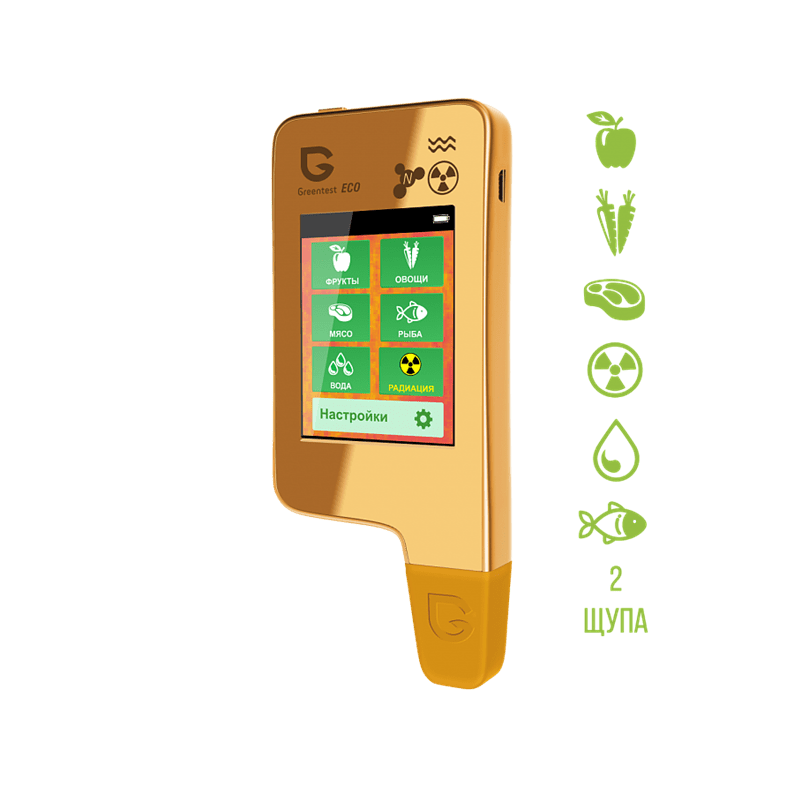

Greentest Eco 5, KIT FB0136

Rating: 4.7

An extremely useful device for home use is the multifunctional dosimeter Greentest Eco 5. It can work for three people, determining the background radiation, the content of nitrates in products and measuring the hardness of water. After purchasing the device, many Russian users were shocked by the quality of the food and water consumed. The device is simple and straightforward to operate. It is enough to turn on the tester, and then select the desired item from the list in the menu. The model is powered by a battery that can be recharged thanks to the supplied adapter. The manufacturer encloses the instructions for use. The experts gave the product the first place in our rating.

The owners admire the work of the dosimeter, despite the error typical for a household device (up to 30%).

Soeks Ecovisor F4

Rating: 4.6

In terms of functionality, the Soeks Ecovisor F4 tester surpasses the leader in the rating. It can measure nitrates in food, detect radiation emissions, test water quality, and detect electromagnetic fields. To ensure performance, the manufacturer used 2 AAA batteries. Experts refer to the advantages of the model as a durable case with rubberized inserts, high sensitivity of the display and ease of use. You can update the dosimeter firmware immediately after connecting to a PC.

Domestic users praise the device for its versatility, touch display, high-quality assembly and ease of use. Disadvantages include high price and short charger wire.

DO-RA VDR-IRQ1801-w

Rating: 4.5

The Russian development DO-RA VDR-IRQ1801-w (white color) is a novelty in the dosimetric devices market. The weight of this product in the package is only 85 g. The gadget is a peripheral device that connects to a smartphone or PC. The dosimeter detects ionizing radiation in the studied areas and objects. For an affordable price, modern approach and compactness, experts gave the product the third place in our rating. To receive data on the radiation level on your smartphone, you must download a free application from Google Play or the App Store.

The DO-RA VDR-IRQ1801-w indicator has just begun to conquer the domestic market, so there is still no reliable data on reliability and durability. While potential buyers are looking at the device, choosing the right color.

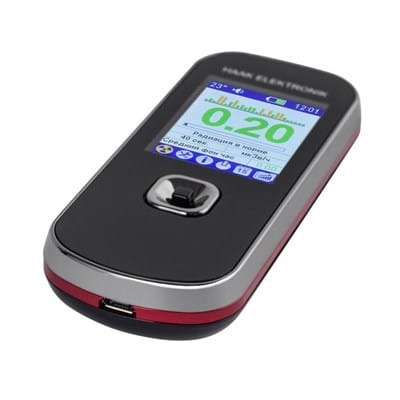

Hook Elektronik SMG-2

Rating: 4.4

The German household dosimeter Haak Elektronik SMG-2 won over the experts with its unusual design. It looks like a mobile phone without being associated with a fashionable toy. The manufacturer focused on the indication of radioactivity; the device performs the main task as efficiently as possible. Of course, in terms of error, the model loses to professional dosimeters. The consumer can receive a prompt operation about the power of beta, gamma and X-ray radiation. Considering the affordable price, the dosimeter deservedly gets into our rating.

According to users, the dosimeter is worthy of praise for its stylish design, ergonomics, clear menu, built-in thermometer and clock. Among the shortcomings, there is an unreliable micro-USB connector, an unsealed case.

SOEKS Ecovisor F3

Rating: 4.3

The dosimeter SOEKS (SOEKS) Ecovisor F3 is not inferior to the leaders in the rating in terms of functionality. The device is able to determine the background radiation, measure the content of nitrates in products and assess the quality of water. The manufacturer installed a composite probe on the tester, it allows you to take measurements at different points. Therefore, the results are quite realistic. After updating the database, the range of vegetables and fruits that the model is able to work with has significantly expanded. Setting up the dosimeter will not cause any difficulties for modern consumers, especially since the set includes an instruction manual.

Most users note the reliability of the tester's readings. But there are also skeptics who do not believe in the accuracy of measurements, considering the price too high.

How much does a dosimeter cost and where can you buy it?

The cost of a personal radiometer depends on the following conditions:

Manufacturer brand;
Overall dimensions;
The sensitivity of the device in relation to ionizing flows;
The duration of the service life.

The Yandex Market resource provides an overview of dosimeters for measuring radiation with different price categories:

Inexpensive options start at 2,990 rubles. These devices are connected to a personal smartphone on Android or iOS through the headphone port. For a simple smartphone user, such dosimeters are affordable and popular models;
Personal sensors with complex menus and controls are slightly more expensive. For example, the Soeks 112 dosimeter model on the Internet portal is presented at a price of 4360 rubles. This is a new model from the Soeks brand that measures the background radiation level in just 10 seconds. The price limit for a household gadget reaches 30,900 rubles. This is a device called CEM DT-9501 481943, designed to measure all types of radiation. However, this model is not included in the state register.

Radiation dosimeters can be purchased in the following online stores: Dicmarket.ru, la crosse technology, MedGadgets.ru, MyDozimetr.RU, OZON.ru, SITITEK, TopRadar.ru, Antiradar-Strelka.rf, TechnoMed, etc. It is most profitable to buy a dosimeter on AliExpress. In this online store, the most budgetary version of the dosimeter in the form of a ballpoint pen costs only 223 rubles.

It should be noted that high-quality dosimeters will cost a lot of money. Cheap models may not live up to expectations: readings can be superficial with a high degree of error. And the service life of such devices can reach no more than one day.

How to use a personal device?

Before purchasing a household meter, you should read the instructions for use. Then you can start testing the dosimeter. As mentioned above in the article, the permissible limit for the radioactive dose is from 5 to 50 micro-roentgens per hour. But there are places where 100-200 microroentgens per hour is considered the norm. For example, in the cockpit of a flying plane, on the tops of the mountains.

It is important to know that the device measures readings with a small margin of error. In the description of the device, the deviation from the true value must be written. Only then can the exact rate of the ionization dose be determined. The interval between checks should be 5 – 10 minutes.

After reading the instructions, it is enough to bring the meter to the object and wait for the processing of the result. The conclusions will be reflected on the display in the corresponding numerical values. Measurements should be taken outdoors, then at home. To obtain a more accurate analysis, experiments are carried out three times at the same place. The more serious the equipment, the faster the speed of obtaining the result.

Sources used and useful links on the topic: https://instanko.ru/elektroinstrument/dozimetr-radiacii-kakoj-vybrat.html https://ecotestexpress.ru/articles/pribor_dlya_izmereniya_radiatsii/ https://MilitaryArms.ru/ugrozy-dlya -zhizni-na-planete / schetchik-gejgera / https://GeekHard.ru/luchshie-bytovye-dozimetry-radiaczii-po-otzyvam-pokupatelej/ https://www.equipnet.ru/articles/tech/tech_54353.html https://tehpribory.ru/glavnaia/pribory/dozimetr-radiatsii.html https://zen-Top.ru/top-luchshih-bytovyh-dozimetrov-radiacii/ https://expertology.ru/7-luchshikh-dozimetrov / https://tehnolev.ru/tsifrovaya-tehnika/dozimetr/bytovoy-dozimetr-radiatsii-kakoy-luchshe-kak-vybrat-reyting.html https://yanashla.com/rejting-luchshih-dozimetrov-radiaczii/

Post source: lastici.ru
